Mimaki TS200-1600 Dye Sublimation Printer
Say Hello To The Mimaki TS200-1600
Affordable. Reliable. Capable.
Low Cost. High Return.
Mimaki TS200-1600 is a dye sublimation inkjet printer for textiles and apparel that enables even first-time users to easily achieve high-quality prints.
A single high-density, high-resolution print head “330 Engine” which is used in our flagship printers is adopted in TS200 and can express uniform, beautiful high-concentration colors and intricate designs.

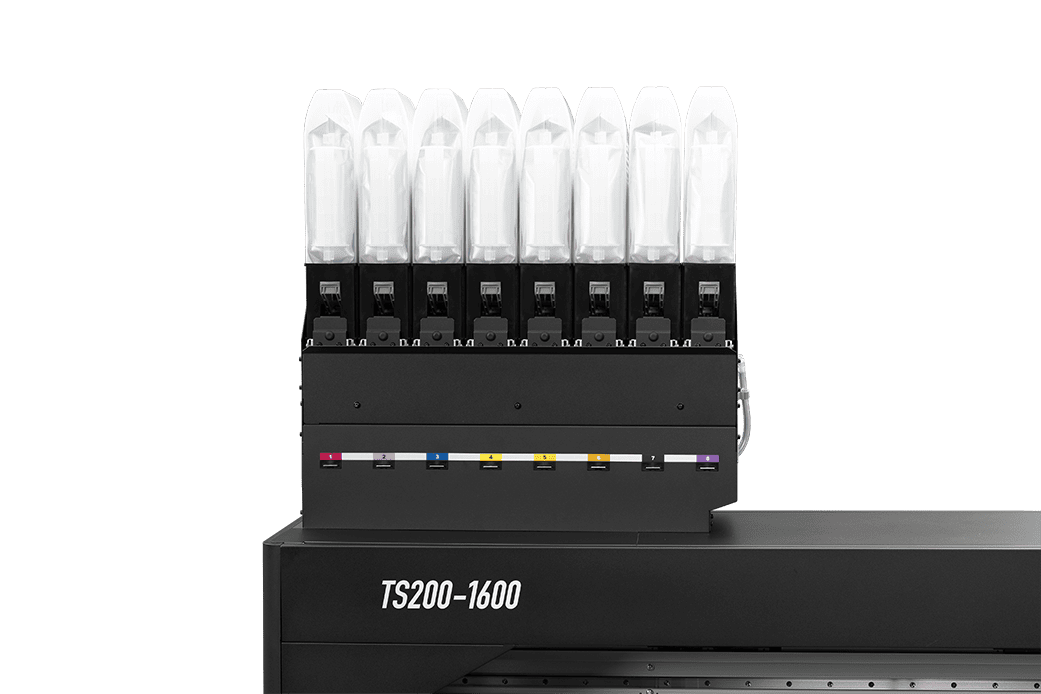

Now Available with 8 Colour Ink Set
Produces even beautiful and vivid Colours, enhances apparel.
Blue, Magenta, Yellow, Black, Violet, Orange, Fluorescent Pink and Fluorescent Yellow
The TS200 is also available as a 2x B, M, Y, K
High Density, Eco-Certified Sublimation Ink
The printer runs on Mimaki’s OEKO-TEX® ECO-PASSPORT certified Sb411 inks, ensuring high-density prints that are both durable and environmentally responsible. The certification allows print providers to meet sustainability requirements demanded by global textile brands and eco-conscious consumers.
Mimaki TS200-1600 Dye Sublimation Printer - The New Business Model
Printer Specifications
| Mimaki TS200-1600 Specifications |
| Printing modes |
70 m2/hr - Super Draft (1-pass)
46 m2/hr - Draft (2-pass)
36 m2/hr - High Speed (2-pass)
25 m2/hr - Standard (3-pass)
19 m2/hr - High Quality (4-pass) |
| Print Resolution |
Y:300, 600, 900 dpi X:600 dpi |
| Ink Types |
Mimaki Sb411 |
| Ink Cartridges |
Bl, M, Y, K, Vi, Or, Fp, Fy / Bl, M, Y, K |
| Cartridge Size |
2 Litre |
| Print Heads |
On-Demand Piezo (2 Staggered Printheads) |
| Max Print Width |
1610mm |
| Roll Size |
Up To 1620mm |
| Roll Weight |
45kg |
| Roll Diameter |
250mm |
| Thickness |
1mm |
| Interface |
USB2.0 / Ethernet 1000BASE-T |
| Operational Environment |
Temperature: 20-30°C / Humidity: 35-65% Rh (Non-condensing) |
| Dimensions (Printer) W x D x H |
2,770 x 748 x 1,623 mm |
| Weight (Printer) |
155kg |
Expert Printing Made Easy With The Mimaki TS200-1600
Finance Options Now Available
