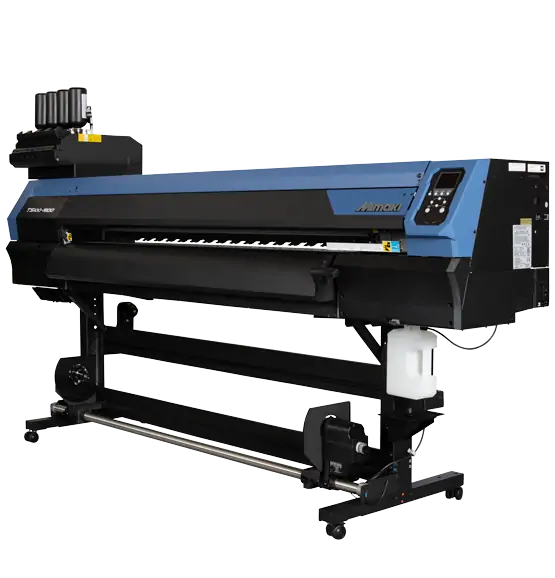

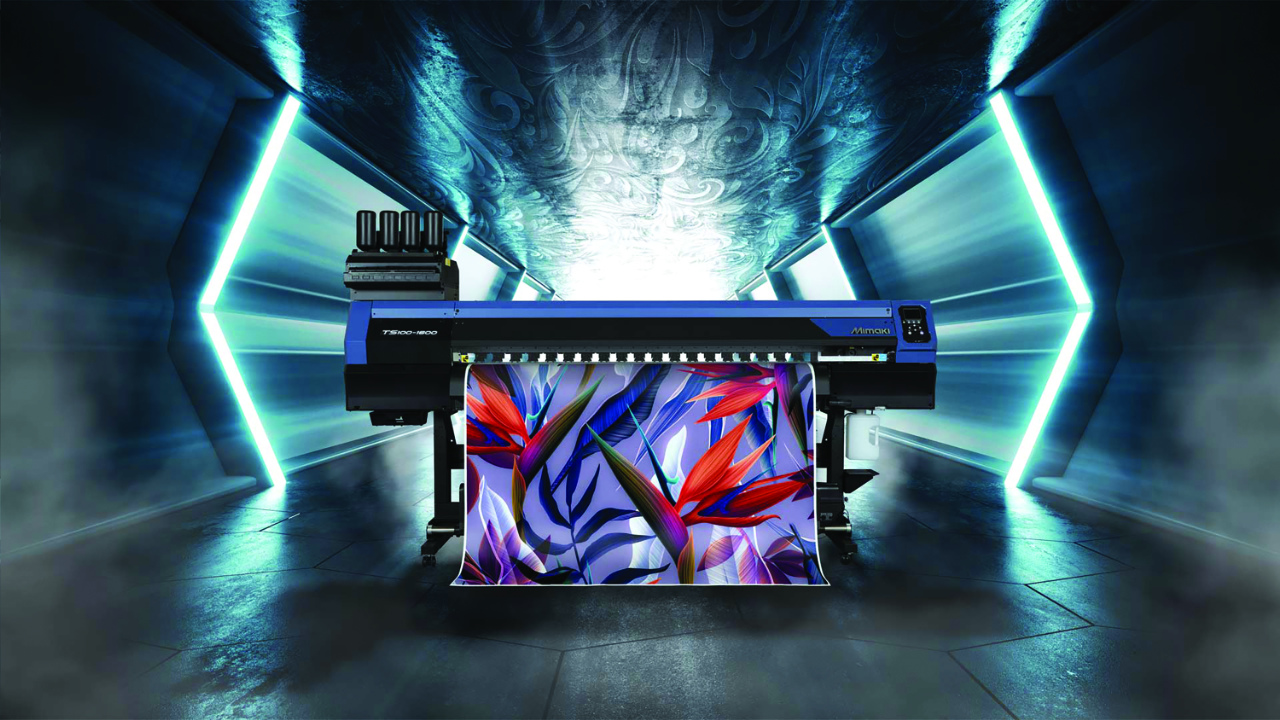

Mimaki TS100-1600 Dye Sublimation Printer
Say Hello To The Mimaki TS100-1600
Affordable. Reliable. Capable.
NEW OFFER AVAILABLE TILL 26TH SEPTEMBER
Low Cost. High Return.
The Mimaki TS100-1600 provides a unique opportunity for textile production companies to meet the demands of the rapidly growing sublimation market. Offered at an entry-level price and with an incredible maximum speed of 70m²/h, the TS100-1600 sets a new standard in dye sublimation printing. By delivering the best price/performance ratio in the market, it is an absolute game-changer!
New Dot Adjustment System (DAS)
Introducing Mimaki’s easy-to-operate Dot Adjustment System (DAS), which automatically performs bi-directional and media feed adjustments. This eliminates the need for manual adjustments, saving time and improving overall productivity.
High Density, Eco-Certified Sublimation Ink
Newly available in competitively priced 1L bottles, Mimaki’s Sb610 inks enable businesses to grow profitably and effectively. ECO PASSPORT certified by Oeko-Tex® (an independent verification process demonstrating the safety for use in sustainable textile production), Mimaki Sb610 inks offer strong environmental credentials and high colour yield.
Mimaki TS100-1600 Dye Sublimation Printer - The New Business Model
Printer Specifications
| Mimaki TS100-1600 Specifications |
| Printing modes |
70 m2/hr - Super Draft (2-pass)
46 m2/hr - Draft (3-pass)
36 m2/hr - High Speed (4-pass)
25 m2/hr - Standard (6-pass)
19 m2/hr - High Quality (8-pass) |
| Print Resolution |
360 dpi, 600 dpi, 720 dpi, 900 dpi |
| Ink Types |
Mimaki Sb610 |
| Ink Cartridges |
Bl, M, Y, K |
| Cartridge Size |
1 Litre |
| Print Heads |
On-Demand Piezo (2 Staggered Printheads) |
| Max Print Width |
1610mm |
| Roll Size |
Up To 1620mm |
| Roll Weight |
45kg |
| Roll Diameter |
250mm |
| Thickness |
1mm |
| Interface |
USB2.0 / Ethernet 1000BASE-T |
| Operational Environment |
Temperature: 20-30°C / Humidity: 35-65% Rh (Non-condensing) |
| Dimensions (Printer) W x D x H |
2,775 x 700 x 1,475mm |
| Weight (Printer) |
166kg |
Expert Printing Made Easy With The Mimaki TS100-1600
Finance Options Now Available
